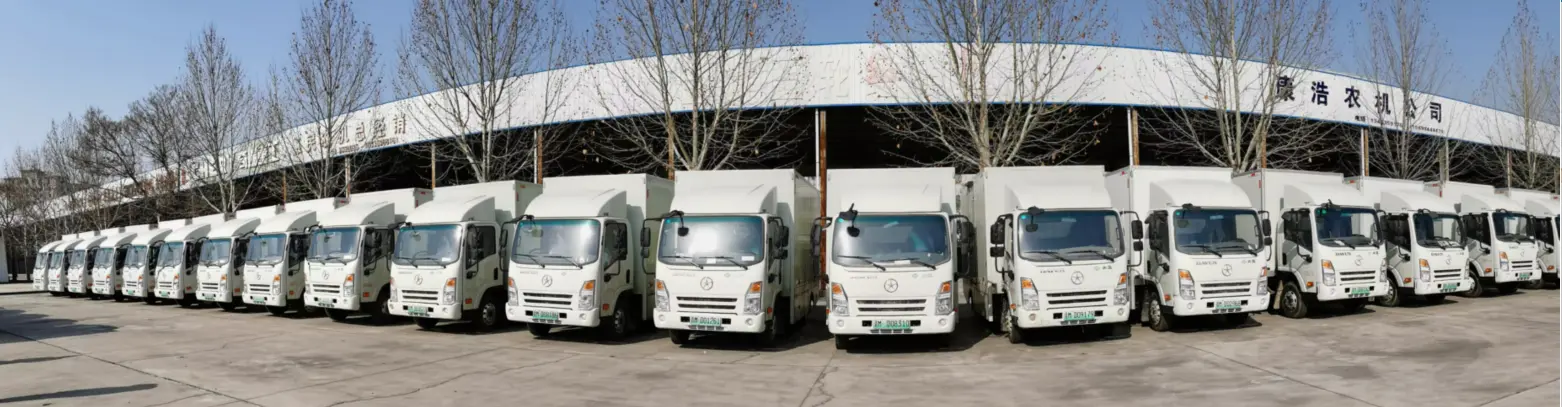

Dayun New Energy Logistics Vehicle
| L×W×H(mm) | 6820×2400，2450×3410,3460 |
| Wheelbase（mm） | 3900 |
| F/R track(mm) | 1645/1588 |
| Design maximum total mass（kg) | 9200 |
| Max.speed in 30min≥(km/h) | 80 |
| Design maximum speed (km/h) | 89 |
Electric Heavy Duty Truck
| Project | Pure electric logistics vehicle | Hydrogen energy logistics vehicle | |||||
| Model platform | Announcement model | CGC5095X | CGC5045XXYBEV1Z16 | CGC5045XX | / | CGC5045X |
|
| Vehicle type code | X5090XXYB0M | X5040XXYB0S | C5040XXYB0B | X5040XXYB0B | X5040XXYB0F | X5090XXYF0W | |
| Bearing type | Standard load type | Standard load type | composite | composite | composite | Standard load type | |
| Driving form | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | |
| Cabin | Autoplead 1995mm | Autoplead 1835mm | Xianglong 1880mm | Autoplead 1835mm | Autoplead 1835mm | Xianglong 2030mm | |
| Dimension parameters | L×W×H(mm)(complete vehicle) | 6820×2400, 2450×3410, 3460 | 5995×2200, 2250×2770, 3020, 3120 | 5995×2200, 2250×2770, 3020, 3120 | 5995×2200, 2250×2770, 3020, 3120 | 5995×2200, 2250×2770, 3020, 3120 | 6730 × 2250 × 3300 |
| L×W×H(mm)(chassis) | 6480 × 2030 × 2320, 2780 | 5880×1950, 2050×2270, 2720 | 5880×1950, 2050×2270, 2720 | 5880×1950, 2050×2270, 2720 | 5880×1950, 2050×2270, 2720 | 6730 × 2250 × 3300 | |
| Wheelbase（mm） | 3900 | 3300 | 3300 | 3300 | 3300 | 3900 | |
| F/R track(mm) | 1645/1588 | 1545/1538 | 1545/1538 | 1545/1538 | 1545/1538 | 1625/1682 | |
| F/R suspension(mm) | 1150/1430 | 1150/1430 | 1150/1430 | 1150/1430 | 1150/1430 | 1180/1645 | |
| Approach/departure angle(°) (complete vehicle) | 18/23，18/18 | 20/23，20/18 | 20/18 | 20/18 | 20/18 | 20/14 | |
| Min.turning diameter≤ (m) | 16 | 14 | 14 | 14 | 14 | 16 | |
| Mass parameters | Maximum total mass allowed by announcement(kg) | 9000 | 4495 | 4500 | 4500 | 4500 | 9000 |
| Design maximum total mass(kg) | 9200 | 6000 | 6000 | 4500 | 4500 | 9000 | |
| Bulletin allowable chassis kerb mass(kg) | 3560 | 2495 | 2995 | 2995 | 2995 | 3560 | |
| Actual measurement of chassis kerb mass:(kg) | 3560 | 2495 | 3010 | / | / | / | |
| Number of passengers | 2,3 | 2,3 | 2,3 | 2 | 2,3 | 2,3 | |
| Total number of permitted trailers announced:(kg) | 3815,3880 | 1370,1305 | 1370，1305 | 1370，1305 | 1370，1305 | 3805，3870 | |
| Total number of permitted trailers announced: (kg) | / | / | / | / | / | / | |
| Actual total mass of quasi Trailer:(kg) | / | / | / | / | / | / | |
| Dynamic performance | Design maximum speed (km/h) | 89 | 89 | 89 | 89 | 89 | 89 |
| Max.speed in 30min≥(km/h) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Reversing speed limit≤(km/h) | 15 | 15 | 15 | 15 | 15 | 15 | |
| Economic speed(km/h) | 40-60 | 30-50 | 30-50 | 30-50 | 30-50 | 40-60 | |
| Driving range (40km/h) (km) | 210 | ≥300 | 350 | 270 | 380 | ≥350 | |
| Working condition | Class II and above ordinary roads | Class II and above ordinary roads | Urban highway | Urban highway | Class II and above ordinary roads | Class II and above ordinary roads | |
| Maxi.gradient (%) | ≥30% | ≥20%（6000kg Full load） | 25 | 20 | ≥20% | ≥20% | |
| Powertrain configuration | Drive motor type | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous |
| Drive motor manufacturer | Top gear | Jing-Jin Electric(JJE) | Shanghai Edrive | Suzhou Inovance | Suzhou Inovance | Suzhou Suruielec | |
| Model of drive motor | TZ365XSTPG12 | TZ220XSA04 | TZ368XSD20 | TZ230XSIN101 | TZ310XS-LKM0854 | TZ280XS-HD001 | |
| Rated power / speed / torque of electric vehicle drive motor (kW/r/min/N.m) | 115/2000/550 | 60/3800/150 | 65/1500/415 | 60/3820/150 | 60/3820/150 | 70/3290/203 | |
| Peak power / speed / torque of electric vehicle drive motor (kW/r/min/N.m) | 150/4500/1000 | 120/12000/320 | 130/4500/1000 | 120/12000/320 | 120/12000/320 | 150/9100/550 | |
| Transmission model/speed ratio | TS-0410，4/ (4.396、2.427、1.483、1) | AG1020，3.043 | / | / | / | / | |
| Layout type/position of drive motor | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | Rear / integrated axle | |
|
| Working form of drive motor | EMT | Single reduction | Direct drive | Direct drive | Direct drive | Direct drive |
| Thermal configuration management | Fan type | Intelligence | Intelligence | Intelligence | Intelligence | Intelligence | Intelligence |
| A/C | 手动Manual | 手动Manual | Semi-auto | Semi-auto | 手动Manual | Manual | |
| PTC/Independent heating | Non adjustable PTC | Non adjustable PTC | Adjustable PTC | Adjustable PTC | Non adjustable PTC | Non adjustable PTC | |
| Power battery configuration | Type of power battery | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium nickel cobalt manganate (ternary) | Lithium iron phosphate |
| Power battery pack manufacturer | CATL | CATL | CATL | CATL | Zhejiang gaosen | CATL | |
| Nominal voltage of power battery pack（V） | 566.72 | 540.96 | 566.72 | 540.96 | 488.4 | 518.4 | |
| Nominal capacity of power battery pack（Ah） | 173 | 150 | 173 | 150 | 186 | 92 | |
| Total storage capacity of power battery pack（kWh） | 98.04 | 81.14 | 98.04 | 81.14 | 90.84 | 47.69 | |
| Power battery energy density(Wh/kg) | 154.59（L173TB1）、153.84（L173TB2） | 146.7 | 153/154 | 146.7 | 162.8 | 116.05 | |
| Power supply mode | charging | charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | |
| Drive motor controller manufacturer | Top gear | SHEN INVT | Suzhou Inovance | Suzhou Inovance | Suzhou Inovance | SHEN INVT | |
| Low voltage electric control accessories | Power system | Single 24V, negative grounding; Mechanical power main switch | Single 12V, negative grounding; Rated capacity 100Ah; Mechanical power main switch | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 12V | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 12V | Single 12V, negative grounding; Rated capacity 120ah; Mechanical power main switch | Single 24V, negative grounding; Electromagnetic power main switch |
| Auxiliary reversing system | / | / | yes | / | Reversing image | Reversing image | |
| Electric key | yes | yes | yes | / | / | yes | |
| Chassis configuration | Number of front axle spring leaf(pcs) | 9 | 3 | 1 | 3 | 3 | 9 |
| Number of rear axle spring leaf(pcs) | 9+6 | 3+3 | 2 | 3+3 | 3+3 | 9+6 | |
| Front axle braking mode | Drum brake | Drum brake | Disc brake | Drum brake | Drum brake | Drum brake | |
| Front axle bearing（t） | 3 | 2.2 | 1+1 | 2.2 | 2.2 | 3 | |
| Rear axle braking mode | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | |
| Rear axle bearing（t） | 5 | 3.5 | 3.5 | 3.5 | 3.5 | 6 | |
| Drive axle speed ratio | 5.29 | 5.857 | 5.857 | 5.857 | 5.857 | 13.52 | |
| Power assisted mode of steering system | Electro hydraulic power | Hydraulic power | Forward hydraulic pressure | Forward hydraulic pressure | Forward hydraulic pressure | Hydraulic power | |
| Brake system | air brake | Forward hydraulic braking | Forward hydraulic braking | Forward hydraulic braking | Forward hydraulic braking | Air brake | |
| Tire | 7.50R16 (rim5.5K), 16 Hierarchy, With inner tube | 6.50R16 (rim5.5K-16), 12 Hierarchy | 6.50R16 (rim5.5K-16), 12 Hierarchy | 6.50R16 (rim5.5K-16), 12 Hierarchy | 6.50R16 (rim5.5K-16), 12 Hierarchy | 8.25R16 (rim6.5H), 16 Hierarchy | |
| ABS | yes | yes | yes | yes | yes | yes | |
| Body configuration | Cabin | Autoplead 1995mm | Autoplead 1835mm | Xianglong 1880mm | Autoplead 1835mm | Autoplead 1835mm | Xianglong 2030mm |
| Window | Electric | Electric | Electric | Electric | Electric | Electric | |
| Door | Electric (central locking) | Electric (central locking) | Electric | Manual | Manual | Electric | |
| Rear mirrors | Manual | Manual | Electric | Manual | Manual | Electric | |
| Driver's seat | Standard | Standard | Flip seat | Flip seat | Flip seat | Standard | |
| Passenger seat | Standard | Standard | integrated seat | integrated seat | integrated seat | Standard | |
| Sleeper | / | / | / | / | / | / | |
| Lift pump | / | / | / | / | / | / | |
| Body mounting form | Rubber damping | Rubber damping | Rubber damping | Rubber damping | Rubber damping | Rubber damping | |
| Driving Recorder | / | / | / | / | / | / | |
