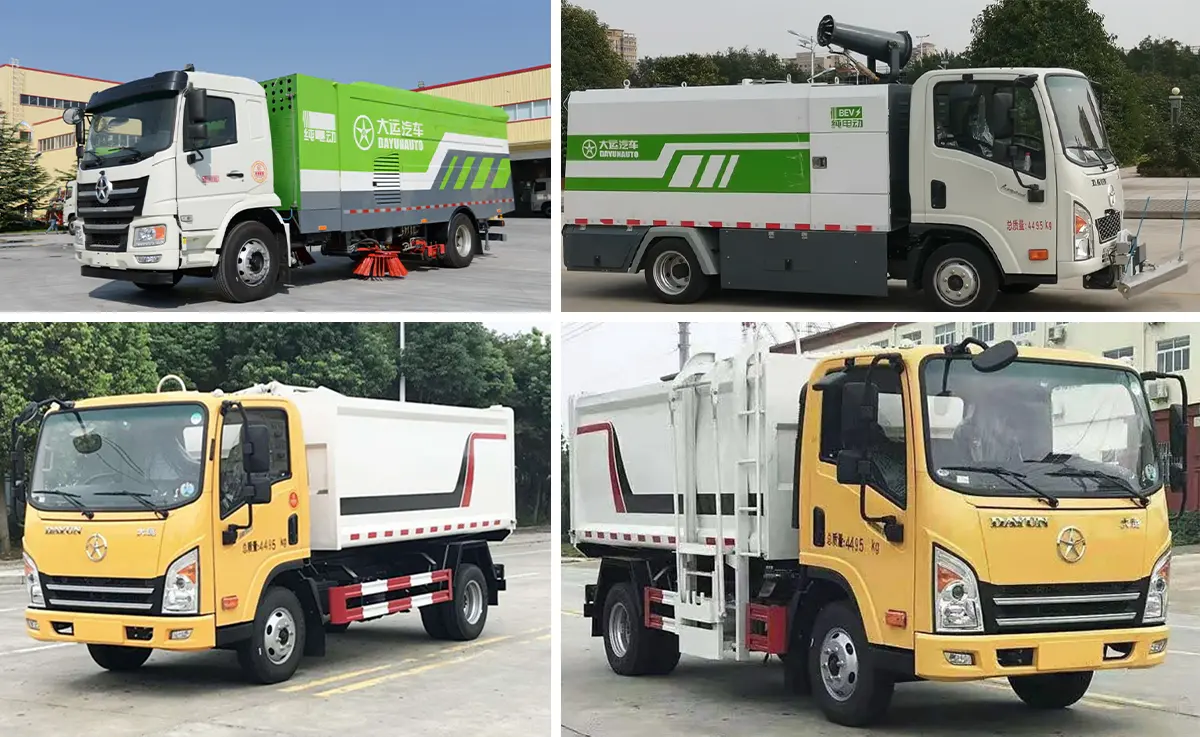

Dayun New Energy Sanitation Vehicle
| L×W×H(mm) | 9230×2530×3300 |
| Wheelbase（mm） | 5300 |
| F/R track(mm) | 1970/1860 |
| F/R suspension(mm) | 1460/2120 |
| Design maximum total mass（kg) | 24000 |
| Design maximum speed (km/h) | 85 |
Electric Heavy Duty Truck
| Project | 12t sanitation vehicle | 4t sanitation vehicle | |||||
| Model platform | Announcement model | CGC5125TXSBEV1Z1 | / | / | / | / | / |
| Vehicle type code | X5120TXSB0X 0AXB456001A | X5121ZYSB0X 0AXB456001A | X5040ZLJB0T 0AQA280001A | X5040ZZZB0M 0AQA280002A | X5041GSSB0M 0AQA280001A | X5040TYHB0M 0AQA280001A | |
| Vehicle type | Pure electric Washing and sweeping vehicle | Compression type garbage truck | Self-unloading type garbage truck | Self-loading & unloading type garbage truck | Road maintenance vehicle | Road maintenance vehicle | |
| Bearing type | composite | composite | Standard load type | composite | composite | composite | |
| Driving form | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | |
| Cabin | 2030 | 2030 | 1735 | 1735 | 1735 | 1735 | |
| Dimension parameters | L×W×H(mm)(complete vehicle) | 7725×2350×2810 | / | 5195×1850×2110 | 5290×1800×2320 | 5600，5135×1810×2195 | 5510，5140×1820×2120 |
| L×W×H(mm)(chassis) | 7700×2350×2420 | 7700×2350×2420 | 5380×1800×2110 | 5380×1800×2110 | 5384×1805×2110 | 5380×1800×2110 | |
| Wheelbase（mm） | 4500 | 4500 | 2820 | 2820 | 2820 | 2820 | |
| F/R track(mm) | 1820/1802 | 1820/1802 | 1475/1364 | 1475/1364 | 1475/1364 | 1475/1364 | |
| F/R suspension(mm) | 1300/1900 | 1300/1900 | 1120/1434 | 1120/1434 | 1120/1434 | 1120/1434 | |
| Approach/departure angle(°) (complete vehicle) | 1300/1925 | / | 1120/1350 | 1120/1350 | 1595/1185 (Optional front spray assembly), 1130/1185 | 1500/1190 (Optional front spray assembly), 1130/1190 | |
| Approach/departure angle (°) | 19/15 | 19/17 | 15/15 | 15/15 | 20/12 | 9/14，20/14 | |
| Min.turning diameter≤（m） | 17.5 | 17.5 | 14 | 14 | 14 | 14 | |
| Mass parameters | Maximum total mass allowed by announcement（kg) | 12495 | 12495 | 4495 | 4495 | 4495 | 4495 |
| Design maximum total mass（kg) | 16000 | 16000 | 6400 | 6400 | 5500 | 5500 | |
| Bulletin allowable chassis kerb mass(kg) | 4900, 5385 (Extended value) | 4900, 5385 (Extended value) | 2100 | 2100 | 2100 | 2100 | |
| Actual measurement of chassis kerb mass:(kg) | 6100 | 6100 | / | / | / | / | |
| Allowable curb weight of the whole vehicle (kg) | 8500 | 8855 | 3500 | 3500 | 3195 | 3020 | |
| Actual measured curb weight of the whole vehicle (kg) | 11078 | 9200 | / | / | / | / | |
| Number of passengers | 2,3 | 2,3 | 2 | 2 | 2 | 2 | |
| Dynamic performance | Design maximum speed (km/h) | 85 | 85 | 85 | 85 | 85 | 85 |
| Max.speed in 30min≥(km/h) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Reversing speed limit≤(km/h) | 20 | 20 | 15 | 15 | 15 | 15 | |
| Economic speed(km/h) | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | |
| Driving range (40km/h) (km) | ≥200 | ≥200 | ≥250 | ≥250 | ≥250 | ≥250 | |
| Working condition | Urban highway | Urban highway | Urban highway | Urban highway | Urban highway | Urban highway | |
| Maxi.gradient (%) | 20 | 20 | 20 | 20 | 20 | 20 | |
| Powertrain configuration | Drive motor type | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous |
| Drive motor manufacturer | FAST | Top gear | Top gear | Top gear | Top gear | Top gear | |
| Model of drive motor | TZ342XSSFY01 | TZ342XSSFY01 | TZ365XSTPG16 | TZ365XSTPG16 | TZ365XSTPG16 | TZ365XSTPG16 | |
| Rated power / speed / torque of electric vehicle drive motor (kW/r/min/N.m) | 105/2000/500 | 105/2000/500 | 60/1500/380 | 60/1500/380 | 60/1500/380 | 60/1500/380 | |
| Peak power / speed / torque of electric vehicle drive motor（kW/r/min/N.m） | 165/4000/1000 | 165/4000/1000 | 120/3500/900 | 120/3500/900 | 120/3500/900 | 120/3500/900 | |
| Layout type/position of drive motor | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | |
| Transmission model | AMT 6-gear AMT | AMT 6-gear AMT | / | / | / | / | |
| speed ratio | 6.40, 3.71, 2.22, 1.37, 1, 0.73, R6.40 | 6.40, 3.71, 2.22, 1.37, 1 , 0.73, R6.40 | Direct drive | Direct drive | Direct drive | Direct drive | |
| Thermal configuration management | Fan type | Intelligence | Intelligence | Intelligence | Intelligence | Intelligence | Intelligence |
| A/C | Semi-auto | Semi-auto | Manual | Manual | Manual | Manual | |
| PTC/Independent heating | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | |
| Power battery configuration | Type of power battery | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Power battery pack manufacturer | CATL | CATL | CATL | CATL | CATL | CATL | |
| Nominal voltage of power battery pack(V) | 598.92 | 598.92 | 386.4 | 386.4 | 386.4 | 386.4 | |
| Nominal capacity of power battery pack(Ah) | 404 | 404 | 173 | 173 | 173 | 173 | |
| Total storage capacity of power battery pack(kWh) | 242 (back) | 242 (back) | 66.84 (Side hanging) | 66.84 (Side hanging) | 66.84 (Side hanging) | 66.84 (Side hanging) | |
| Power battery energy density(Wh/kg) | L202C01：141.5 (Report value)；L202D01：140.7Wh/kg (Report value) | L202C01：141.5 (Report value)；L202D01：140.7Wh/kg (Report value) | 154.59Wh/kg (Report value) | 154.59Wh/kg (Report value) | 154.59Wh/kg (Report value) | 154.59Wh/kg (Report value) | |
| Power supply mode | DC charging pile charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | |
| Low voltage electric control accessories | Power system | Negative grounding; Mechanical main power switch; Vehicle low voltage platform 24V | Negative grounding; Mechanical main power switch; Vehicle low voltage platform 24V | Negative grounding; Mechanical main power switch; Vehicle low voltage platform 24V | Negative grounding; Mechanical main power switch; Vehicle low voltage platform 24V | Negative grounding; Mechanical main power switch; Vehicle low voltage platform 24V | Negative grounding; Mechanical main power switch; Vehicle low voltage platform 24V |
| Auxiliary reversing system | / | / | / | / | / | / | |
| Electric key | Yes | Yes | / | / | / | / | |
| Chassis configuration | Number of front axle spring leaf(pcs) | 9 | 9 | 4 | 4 | 4 | 4 |
| Number of rear axle spring leaf(pcs) | 9+6 | 9+6 | 5+3 | 5+3 | 6+4 | 6+4 | |
| Front axle braking mode | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | |
| Front axle bearing（t） | 3.6t | 3.6t | 1.5t | 1.5t | 1.5t | 1.5t | |
| Rear axle braking mode | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | |
| Rear axle bearing（t） | rear axle 8.5t | rear axle 8.5t | rear axle 2.5t | rear axle 2.5t | rear axle 2.5t | rear axle 2.5t | |
| Drive axle speed ratio | 4.33 | 4.33 | 4.333 | 4.333 | 4.333 | 4.333 | |
| Power assisted mode of steering system | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | |
| Brake system | Air braking | Air braking | Hydraulic brake | Hydraulic brake | Hydraulic brake | Hydraulic brake | |
| Tire | 8.25R20，14PR | 8.25R20，14PR | 195/70R15LT | 195/70R15LT | 195/70R15LT | 195/70R15LT | |
| ABS | YES | YES | YES | YES | YES | YES | |
| Body configuration | Cabin | Xianglong 2030mm | Xianglong 2030mm | New Autoplead 1735mm | New Autoplead 1735mm | New Autoplead 1735mm | New Autoplead 1735mm |
| Window | Electric | Electric | Electric | Electric | Electric | Electric | |
| Door | Electric | Electric | Electric | Electric | Electric | Electric | |
| Rear mirrors | Electric | Electric | Electric | Electric | Electric | Electric | |
| Driver's seat | Standard, leather fabric | Standard, leather fabric | Standard, weft knitted fabric | Standard, weft knitted fabric | Standard, weft knitted fabric | Standard, weft knitted fabric | |
| Passenger seat | Standard, leather fabric | Standard, leather fabric | Standard, weft knitted fabric | Standard, weft knitted fabric | Standard, weft knitted fabric | Standard, weft knitted fabric | |
| Sleeper | one | one | / | / | / | / | |
| Lift pump | Mechanical turnover | Mechanical turnover | Mechanical turnover | Mechanical turnover | Mechanical turnover | Mechanical turnover | |
| Body mounting form | Rubber damping | Rubber damping | Rubber damping | Rubber damping | Rubber damping | Rubber damping | |
| Driving Recorder | Normal | Normal | Normal | Normal | Normal | Normal | |
| Project | 18t sanitation vehicle | |||||
| Model platform | Announcement model | CGC5180TXSBEV1Z1 | CGC5180GQXBEV1Z1 | CGC5180TDYBEV1Z1 | / | / |
| Vehicle type code | X5180TXSB0X 0ALH536005A | X5180GQXB0X 0ALH506001A | X5180TDYB0X 0ALH536001A | X5180ZLJB0X 0ALH456001A | X5180ZYSB0X 0ALH456001A | |
| Vehicle type | Pure electric Washing and sweeping vehicle | Pure electric Cleaning vehicle | Multifunctional dust suppression vehicle | Detachable container garbage collector | Compression type garbage truck | |
| Bearing type | composite | composite | composite | composite | composite | |
| Driving form | 4×2 | 4×2 | 4×2 | 4×2 | 4×2 | |
| Cabin | N6H（171H) | N6H（171H) | N6H（171H) | N6H（171H) | N6H（171H) | |
| Dimension parameters | L×W×H(mm)(complete vehicle) | 9230×2530×3300 | 9740×2530×3050 | 9230×2530×3300 | 7260×2500×3050 | 8370×2500×3050 |
| L×W×H(mm)(chassis) | 8880×2500×3050 | 8580×2500×3050 | 8880×2500×3050 | 7880×2500×3050 | 7880×2500×3050 | |
| Wheelbase（mm） | 5300 | 5000 | 5300 | 4500 | 4500 | |
| F/R track(mm) | 1970/1860 | 1970/1860 | 1970/1860 | 1970/1860 | 1970/1860 | |
| F/R suspension(mm) | 1460/2120 | 1460/2120 | 1460/2120 | 1460/1920 | 1460/1920 | |
| Approach/departure angle(°) (complete vehicle) | 1460/2470 | 1460/2200 | 1460/2690 | 1460/1300 | 1460/2410 | |
| Approach/departure angle (°) | 17/10 | 8/12 | 8/8 | 17/10 | 17/10 | |
| Min.turning diameter≤（m） | 18.6 | 17.8 | 18.6 | 16.6 | 16.6 | |
| Mass parameters | Maximum total mass allowed by announcement(kg) | 18000 | 18000 | 18000 | 18000 | 18000 |
| Design maximum total mass（kg) | 24000 | 24000 | 24000 | 24000 | 24000 | |
| Bulletin allowable chassis kerb mass(kg) | 7800 | 7650 | 7800 | 7600 | 7600 | |
| Actual measurement of chassis kerb mass:(kg) | 7810 | 7591 | 7810 | / | / | |
| Allowable curb weight of the whole vehicle (kg) | 13700 | 10150 | 12150 | 10000 | 12300 | |
| Actual measured curb weight of the whole vehicle (kg) | 15713 | 10259 | 12240 | / | / | |
| Number of passengers | 2,3 | 2,3 | 2,3 | 2,3 | 2,3 | |
| Dynamic performance | Design maximum speed (km/h) | 85 | 85 | 85 | 85 | 85 |
| Max.speed in 30min≥(km/h) | 80 | 80 | 80 | 80 | 80 | |
| Reversing speed limit≤(km/h) | 20 | 20 | 20 | 20 | 20 | |
| Economic speed(km/h) | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | |
| Driving range (40km/h) (km) | ≥300 | ≥300 | ≥300 | ≥200 (Full load driving state) | ≥200 (Full load driving state) | |
| Working condition | Urban highway | Urban highway | Urban highway | Urban highway | Urban highway | |
| Maxi.gradient (%) | 20 | 20 | 20 | 20 | 20 | |
| Powertrain configuration | Drive motor type | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous | Permanent magnet synchronous |
| Drive motor manufacturer | FAST | FAST | FAST | FAST | FAST | |
| Model of drive motor | TZ342XSSFY01 | TZ342XSSFY01 | TZ342XSSFY01 | TZ342XSSFY01 | TZ342XSSFY01 | |
| Rated power / speed / torque of electric vehicle drive motor（kW/r/min/N.m） | 105/2000/500 | 105/2000/500 | 105/2000/500 | 105/2000/500 | 105/2000/500 | |
| Peak power / speed / torque of electric vehicle drive motor（kW/r/min/N.m） | 165/4000/1000 | 165/4000/1000 | 165/4000/1000 | 165/4000/1000 | 165/4000/1000 | |
| Layout type/position of drive motor | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | Vertical/middle | |
| Transmission model | AMT 6-gear AMT | AMT 6-gear AMT | AMT 6-gear AMT | AMT 6-gear AMT | AMT 6-gear AMT | |
| speed ratio | 6.40,3.71,2.22,1.37,1 ,0.73,R6.40 | 6.40,3.71,2.22,1.37,1 ,0.73,R6.40 | 6.40,3.71,2.22,1.37,1 ,0.73,R6.40 | 6.40,3.71,2.22,1.37,1 ,0.73,R6.40 | 6.40,3.71,2.22,1.37,1 ,0.73,R6.40 | |
| Thermal configuration management | Fan type | Intelligence | Intelligence | Intelligence | Intelligence | Intelligence |
| A/C | Semi-auto | Semi-auto | Semi-auto | Semi-auto | Semi-auto | |
| PTC/Independent heating | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | PTC Adjustable PTC | |
| Power battery configuration | Type of power battery | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Power battery pack manufacturer | CATL | CATL | CATL | CATL | CATL | |
| Nominal voltage of power battery pack(V) | 579.6 | 540.96 | 579.6 | 560.28 | 560.28 | |
| Nominal capacity of power battery pack(Ah) | 542 | 456 | 542 | 228 | 228 | |
| Total storage capacity of power battery pack(kWh) | 314.14 (back) | 246.68 (back) | 314.14 (back) | 255.49 (Side hanging) | 255.49 (Side hanging) | |
| Power battery energy density(Wh/kg) | 140.7 (Report value) | 155.95 | 140.7 (Report value） | 160.26/159.79 | 160.26/159.79 | |
| Power supply mode | DC charging pile charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | DC charging pile charging | |
| Low voltage electric control accessories | Power system | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 24V | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 24V | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 24V | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 24V | Negative grounding; Electromagnetic power main switch; Vehicle low voltage platform 24V |
| Auxiliary reversing system | 360 look around image | / | / | / | / | |
| Electric key | Yes | Yes | Yes | Yes | Yes | |
| Chassis configuration | Number of front axle spring leaf(pcs) | 8 | 8 | 8 | 8 | 8 |
| Number of rear axle spring leaf(pcs) | 10+8 | 10+8 | 10+8 | 10+8 | 10+8 | |
| Front axle braking mode | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | |
| Front axle bearing（t） | 5.5t | 5.5t | 5.5t | 5.5t | 5.5t | |
| Rear axle braking mode | Drum brake | Drum brake | Drum brake | Drum brake | Drum brake | |
| Rear axle bearing（t） | rear axle 10t | rear axle 10t | rear axle 10t | rear axle 10t | rear axle 10t | |
| Drive axle speed ratio | 5.57 | 5.57 | 5.57 | 5.57 | 5.57 | |
| Power assisted mode of steering system | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | Electro hydraulic power | |
| Brake system | Air braking | Air braking | Air braking | Air braking | Air braking | |
| Tire | 295/80R22.5 18PR | 295/80R22.5 18PR | 295/80R22.5 18PR | 295/80R22.5 18PR | 295/80R22.5 18PR | |
| ABS | YES | YES | YES | YES | YES | |
| Body configuration | Cabin | N6H(171H) Flat roof | N6H(171H) Flat roof | N6H(171H) Flat roof | N6H(171H) Flat roof | N6H(171H) Flat roof |
| Window | Electric | Electric | Electric | Electric | Electric | |
| Door | Electric | Electric | Electric | Electric | Electric | |
| Rear mirrors | Manual | Manual | Manual | Manual | Manual | |
| Driver's seat | Airbag | Airbag | Airbag | Airbag | Airbag | |
| Passenger seat | Flip seat | Flip seat | Flip seat | Flip seat | Flip seat | |
| Sleeper | one | one | one | one | one | |
| Lift pump | Hand pressure pump | Hand pressure pump | Hand pressure pump | Hand pressure pump | Hand pressure pump | |
| Body mounting form | Front articulated rear coil spring | Front articulated rear coil spring | Front articulated rear coil spring | Front articulated rear coil spring | Front articulated rear coil spring | |
| Driving Recorder | Normal | Normal | Normal | Normal | Normal | |
