XPENG G9
| Length x Width x Height (mm) | 4891 / 1937 / 1680 |
| Wheelbase (mm) | 2998 |
| Number of Seats | 5 |
| Power output (kW) | 230 |
| Torque (N·m) | 430 |
| Top Speed (km/h) | 200 |
XPENG
Show Details
| Model: | XPENG G9 | ||
| Version | RWD Standard Range | RWD Long Range | AWD Performance |
| Length x Width x Height (mm) | 4891 / 1937 / 1680 | 4891 / 1937 / 1670 (with air spring) | |
| Wheelbase (mm) | 2998 | ||
| Track Front / Rear (mm) | 1656 / 1663 | ||
| Full Load Ground Clearance | 145 | 145 (±50mm with air spring) | |
| Number of Seats | 5 | ||
| Curb Weight (kg) | 2235 without tow bar 2255 with tow bar | 2210 without tow bar 2230 with tow bar | 2340 without tow bar 2360 with tow bar |
| Gross Vehicle Mass (GVM) (kg) | 2680 | 2800 | |
| Trunk Space (L) | 660L / 1576L (when rear seats folded) | ||
| Front Trunk Space (L) | 71 | ||
| Comprehensive Performance * data to be confirmed by WVTA in the end of Aug. 2023 | |||
| Drivetrain | RWD | AWD | |
| Motor type | Permanent Magnet Synchronous Motor | Front: Induction Motor Rear: Permanent Magnet Synchronous Motor | |
| Power output (kW) | 230 | 405 (F175+R230) | |
| Horse power (hp) | 313 | 551 (F238+R313) | |
| Torque (N·m) | 430 | 717 (F287+R430) | |
| Top Speed (km/h) | 200 | ||
| Acceleration (0~100km/h) (s) | 6.4 | 3.9 | |
| Braking distance (100-0km/h) (m) | 34.6 | ||
| Cell Type | LFP | NCM | |
| Gross battery capacity (kWh) | 78.2 | 98 | |
| Net battery capacity (kWh) | 75.8 | 93.1 | |
| Energy consumption (kWh/100km) | 19.4 | 19.4 | 21.3 |
| WLTP Driving Range (km) | up to 460 | up to 570 | up to 520 |
| AC charging power (kW) | up to 11 (3-phase) | ||
| AC charging time (5–100%) | ≥9h | ≥11h | |
| DC fast charging power (kW) | up to 260 | up to 300 | |
| DC charging time (10-80%) | 20min = 10-80% SOC* | ||
| Charging port | CCS2 | CCS2 | CCS2 |
| Suspension System | Front Double Wishbone Independent Suspension / Rear Multi-link Independent Suspension | ||
| Intelligent dual-chamber air spring | — | — | ● |
| Electromagnetic Adjusted Damper | — | — | ● |
| Braking System | Front and Rear Ventilated Braking Discs | ||
| Drag Coefficient | 0.272 | ||
| Battery type | Lithium Iron Phosphate | Ternary lithium battery | |
| Regenerative breaking | YES | ||
| XPILOT 2.5 (Advanced Driver Assistance System) | |||
| Hardware System | |||
| Processor | NVIDIA® Orin-X | ||
| High-definition millimeter-wave radar | 5 | 5 | 5 |
| Ultrasonic sensors | 12 | 12 | 12 |
| Surround view camera | 4 | 4 | 4 |
| High perception camera | 7 | 7 | 7 |
| In-car camera | 1 | 1 | 1 |
| XPILOT Driving | |||
| Adaptive Cruise Control（ACC） | ● | ● | ● |
| Lane Centering Control（LCC） | ● | ● | ● |
| Adaptive Turning Cruise（ATC） | ● | ● | ● |
| Active Lane Change（ALC ） | ● | ● | ● |
| Automatic Speed Limiter（ASL） | ● | ● | ● |
| XPILOT Parking | |||
| Enhanced Auto Parking Assist (EAP2.0) | ● | ● | ● |
| Auto Exit Parking Assist (AEP) | ● | ● | ● |
| Parking assist with 360° camera | ● | ● | ● |
| Transparent Chassis | ● | ● | ● |
| XPILOT Safety | |||
| Forward Collision Prevention | |||
| · Forward Distance Monitoring（FDM） | ● | ● | ● |
| · Forward Collision Warning（FCW） | ● | ● | ● |
| · Autonomous Emergency Braking（AEB） | ● | ● | ● |
| · Traffic Sign Recognition（TSR） | ● | ● | ● |
| · Speed Assistant System (SAS) | ● | ● | ● |
| · Intelligent High Beam（IHB） | ● | ● | ● |
| · Driver State Monitoring (DSM) | ● | ● | ● |
| Side Collision Prevention | |||
| · Blind Spot Detection（BSD） | ● | ● | ● |
| · Door Open Warning（DOW） | ● | ● | ● |
| · Lane Departure Warning（LDW） | ● | ● | ● |
| · Lane Keep Assistance (LKA） | ● | ● | ● |
| · Emergency Lane Keeping (ELK） | ● | ● | ● |
| Rear Collision Prevention | |||
| · Rear Collision Warning（RCW） | ● | ● | ● |
| · Rear Cross-Traffic Alert（RCTA） | ● | ● | ● |
| Xmart OS | |||
| Hardware | |||
| Chipset | Qualcomm Snapdragon® 8155 | ||
| Connectivity | Wi-Fi / 4G Network | Wi-Fi / 4G Network | Wi-Fi / 4G Network |
| Digital dashboard | 10.25" | 10.25" | 10.25" |
| Central control screen | 14.96" | 14.96" | 14.96" |
| Passenger entertainment screen | 14.96" | 14.96" | 14.96" |
| Bluetooth® | ● | ● | ● |
| Front passenger independent Bluetooth connection | ● | ● | ● |
| Mobile Phone Bluetooth key | ● | ● | ● |
| Automatic Mobile Phone Unlocking | ● | ● | ● |
| Mobile App Remote Control | ● | ● | ● |
| App intelligent car locating | ● | ● | ● |
| Software | |||
| "Hey XPENG" voice assistant | 4 zone, full-scenario voice assistant with intelligent recommendation | ||
| Smart Navigation | ● | ● | ● |
| 3D user interface | ● | ● | ● |
| App Store | music, video (Spotify, TuneIn...) | ||
| DAB + FM radio | ● | ● | ● |
| Welcome Mode | ● | ● | ● |
| Meditation Mode | ● | ● | ● |
| Over-the-air (OTA) software updates | ● | ● | ● |
| Exterior | |||
| Auto-sensing headlights | LED DRL | LED DRL | LED DRL |
| Headlight height adjustment | ● | ● | ● |
| Light show | ● | ● | ● |
| Active grille shutter | ● | ● | ● |
| Automatic window wiper | ● | ● | ● |
| Electric anti-dazzle side mirrors with heating and memory function | ● | ● | ● |
| Soft-Close Doors | ● | ● | ● |
| Frameless Doors | ● | ● | ● |
| Hidden door handles | ● | ● | ● |
| Heated front windshield (lower part) | ● | ● | ● |
| Rear Privacy Glass* | ● | ● | ● |
| Panoramic Sunroof (with thermal insulation/UV protection coating) | ● | ● | ● |
| Heated rear windshield | ● | ● | ● |
| Roof rack | ● | ● | ● |
| Handsfree electric tailgate | ● | ● | ● |
| Electronically deployable tow bar | ○ | ○ | ○ |
| V2L | 3.3kW 230V AC power outlet | ||
| 19" Five-Spoke Aero Wheel (245/45R19) | ● | ● | — |
| 21" 16-Spoke Black & Polished Wheel (255/45R21) | — | — | ● |
| Interior | |||
| Multi-function Leather Steering Wheel (4-way adjustable) | ● | ● | ● |
| Heated steering wheel | ● | ● | ● |
| Ambient Lighting | ● | ● | ● |
| Wireless charging | ● | ● | ● |
| In-car Power (12V) | ● | ● | ● |
| USB Type-A | 1 data transmission + 1 charging port | ||
| USB Type-C | 2 charging ports | ||
| Front sun visors with mirror and lighting | ● | ● | ● |
| Front passenger sun visor with premium LED mirror | ○① | ○① | ○① |
| Sound System | |||
| XPENG Surround Sound System | ● | ● | ● |
| Dynaudio Confidence Sound System | ○① | ○① | ○① |
| Driver seat speakers *2 | ○① | ○① | ○① |
| Dolby Atmos | ○① | ○① | ○① |
| Air-conditioning & Heat Pump | |||
| Automatic dual zone climate control | XfreeBreath® with intelligent air purification system with pollen and PM2.5 filter | ||
| Rear A/C Power Outlet | ● | ● | ● |
| X-HP2.0 Intelligent Thermal Management System with heat pump | ● | ● | ● |
| Seat | |||
| Adjustment | |||
| Driver seat 8-way adjustment | ● | ● | ● |
| Driver seat 4-way lumbar support adjustment | ● | ● | ● |
| Driver seat 2-way thigh support adjustment | ○① | ○① | ○① |
| Passenger seat 6-way adjustment | ● | ● | ● |
| Passenger seat 4-way lumbar support adjustment | ○① | ○① | ○① |
| Passenger seat 2-way leg rest adjustment | ○① | ○① | ○① |
| Passenger seat “Boss Button” | ○① | ○① | ○① |
| Rear seat 2-way thigh support adjustment | ○① | ○① | ○① |
| Rear seat backrest 10° adjustment | ● | ● | ● |
| Foldable rear seats (60/40) | ● | ● | ● |
| Rear seat folding switch in luggage compartment | ● | ● | ● |
| Function | |||
| Heated front seats | ● | ● | ● |
| Front seat position memory | ● | ● | ● |
| Ventilated front seats | ● | ● | ● |
| Adjustable front seat headrest | ● | ● | ● |
| Massage function (4 seats) | ○① | ○① | ○① |
| Heated rear seats | ● | ● | ● |
| Rear armrest with cup holder | ● | ● | ● |
| Rear center headrest | ● | ● | ● |
| Rear footlights | ● | ● | ● |
| Material | |||
| Leatherette seats | ● | ● | ● |
| Nappa seats | ○① | ○① | ○① |
| Safety | |||
| Number of Airbags | 7 | 7 | 7 |
| i-Booster Smart Brake System | ● | ● | ● |
| Electric Stability Program (ESP) | ● | ● | ● |
| Electronic parking brake | ● | ● | ● |
| Autohold | ● | ● | ● |
| Hill descent control | ● | ● | ● |
| Tire-pressure monitoring system (TPMS) | ● | ● | ● |
| Seat belt fastening reminder | ● | ● | ● |
| Rear ISOFIX® | ● | ● | ● |
| Acoustic Vehicle Alerting System (AVAS) | ● | ● | ● |
| E-call | ● | ● | ● |
| Optional Packages | |||
| Package ①: Premium Comfort & Audio | |||
| Nappa Leather seats | ○ | ||
| Massage function (4 seats) | |||
| Driver seat 2-way thigh support adjustment | |||
| Passenger seat 2-way leg rest adjustment | |||
| Passenger seat 4-way lumbar support adjustment | |||
| Passenger seat “Boss Button” | |||
| Rear seats 2-way thigh support adjustment | |||
| Dynaudio Confidence Sound System | |||
| Driver seat speakers *2 | |||
| Dolby Atmos | |||
| Front passenger sun visor with premium LED mirror | |||
| Package ②: Electronically deployable tow bar | |||
| Electronically deployable tow bar (75kg/1500kg) | ● for NO ○ 1290 - EUR | ||
| Exterior Colors | |||
| Arctic White | ● | ||
| Graphite Gray | ○ | ||
| Midnight Black | |||
| Silver Frost | |||
| Kaitoke Green Matte | — | ○ | |

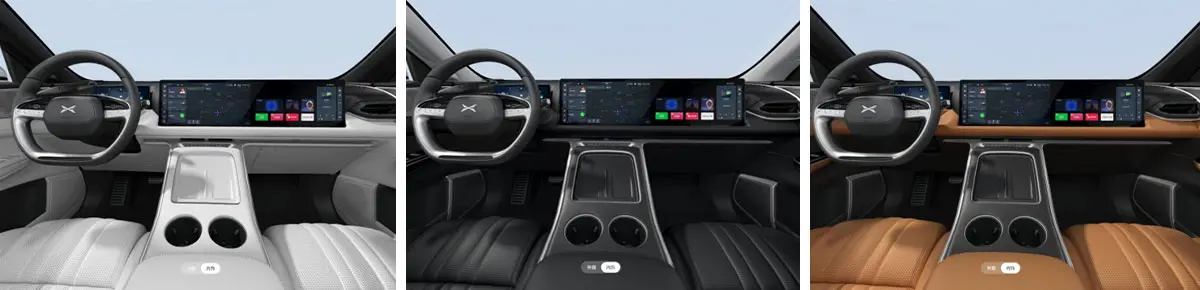

| Interior Colors | |||
| Black Leatherette | ● | ||
| Saddle Leatherette | ● | ||
| Black Nappa Leather | ○① | ||
| Saddle Nappa Leather | ○① | ||
| ●Standard Configuration; ○Optional Configuration; —No such configuration 1. Preliminary figures. Subject to final certification. 2.The vehicle configuration information is only applicable to the corresponding models produced within a certain production month, and the vehicle configuration information produced during different production months might be different. The battery range and charging time are for reference only, and vary depending on the actual circumstances. The configuration table is only for reference, and the actual situation should be based on the actual vehicles sold by the sales store. XPENG has the right to explain and reserve the right to change technical parameters, configuration and other product information within the scope enforced by laws and regulations. 3.Unless otherwise noted, the performance data in the table are tested under standard configuration. 4.XPILOT intelligent driving system is a driving assistance function and cannot cope with all traffic, weather and road conditions. The driver must always pay attention to observe the current traffic situation. If the automatic assist driving system fails to provide proper steering assistance or maintain proper distance and speed, the driver must actively intervene. Please read all information about XPILOT in the driver manual to better understand the limitations of this system. The driver should be aware of these restrictions before using XPILOT. Please be cautious during complex and changeable traffic conditions, icy and snowy roads, wet and slippery weather, stagnant or muddy roads, poor visibility, rugged mountain roads, or highway exits. 5. Rear privacy glass is applicable to the rear side window, rear triangle window, and rear windscreen. 6.The acceleration data is obtained through tests and the actual 0-100 acceleration capability may vary due to different driving skills, remaining capacities, battery temperatures, road conditions, etc. 7. The actual range may differ from the calculated WLTP range, depending on the driver's driving style, speed, number of occupants, vehicle load, outdoor temperature, air conditioner use, terrain, vehicle condition, etc. 8. The AC charging time is the test result under the standard working condition of 11kW charging post, the actual charging time of users may vary depending on the vehicle status, charging facilities and environmental conditions, etc. 9. The 34.6m braking distance is the minimum number tested with 21" michelin tire. The data comes from XPENG Laboratory. It is the test result of the test vehicle under specific loading, SOC, and environment. | |||
